STANDARD STROKES (ALL BORES)
From 0 to 150,every 25mm |
From150 to 500,every 50mm |
From 500 to 1000,every 100mm |
STROKE DEVIATION (ISO 15552)
BORE | STROKE | DEVIATION |
32 - 40 - 50 | MAX TO 500 | +2 |
From 500 to 1000 | +3.2 | |
63 - 80 - 100 | Max to 500 | +2.5 |
From 500 to 1000 | +4 |

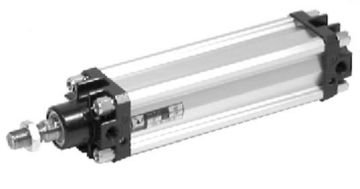

Basic versio "01"
ORDERING CODE | PICTURE |
1319.Ø.STROKCE.01 |
|
1321.Ø .STROKCE.01 | |
13--.Ø.STROKCE.01V FPM | |
13--.Ø.STROKCE.01MA | |
13--.Ø.STROKCE.01MP |

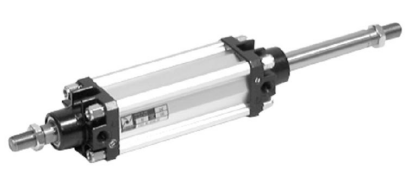

Push/Pull "02"
ORDERING CODE | PICTURE |
1319.Ø.STROKCE.02 |
|
1320.Ø.STROKCE.02 | |
1321.Ø.STROKCE.02 | |
13--.Ø.STROKCE.02V FPM |

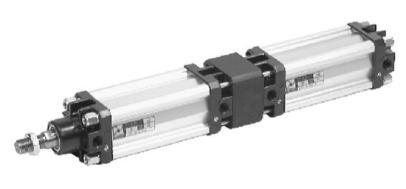

Tandem push with a common rod“G”
ORDERING CODE | PICTURE |
1319.Ø.STROKCE.G |
|
1320.Ø.STROKCE.G | |
1321.Ø.STROKCE.G |

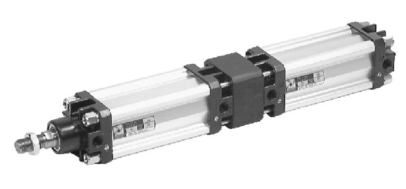

Tandem push with independent rods "F"
ORDERING CODE | PICTURE |
1319.Ø.STROKCE.G |
|
1320.Ø.STROKCE.G | |
1321.Ø.STROKCE.G |

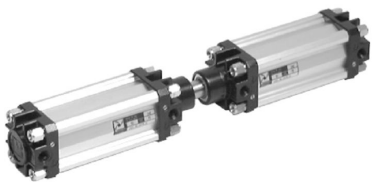

Opposed tandem with common rods "D"
ORDERING CODE | PICTURE |
1319.Ø.STROKCE.STROKCE1.D |
|
1320.Ø.STROKCE.STROKCE1.D | |
1321.Ø.STROKCE.STROKCE1.D |
Tandem with opposed rods"E"
ORDERING CODE | PICTURE |
1319..Ø.STROKCE.STROKCE1.E |
|
1320..Ø.STROKCE.STROKCE1.E | |
1321..Ø.STROKCE.STROKCE1.E |
