Product Details

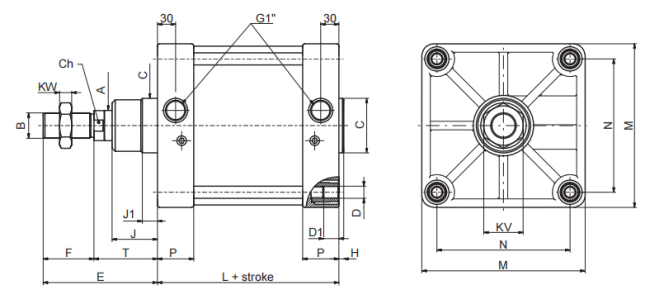

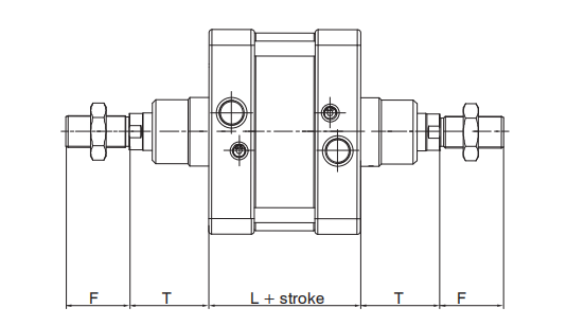

PNEUMAX 1315 series are tie rod round tube cylinders complying with ISO 15552, dedicated for extra-large bore specifications.

  • Standard: ISO 15552

  • Barrel type: Round aluminium tube, tie rod construction

  • Bore: Ø250 mm, Ø320 mm

  • Function: Double acting

  • Versions:

    ✅ Magnetic piston (for reed / Hall position sensors)

    ✅ Non-magnetic piston

    ✅ X1315: ATEX certified version for Zone1 / Zone2 explosive atmosphere

  • Pressure range: 0.5 ~ 12 bar

  • Stroke: Custom stroke up to 1250 mm

  • Seal options: NBR standard; FKM for high temperature and chemical washdown

  • Temperature: -5°C ~ +70°C

  • Medium: Filtered compressed air, non-lubricated operation supported

  • Mounting: Full ISO15552 mounting accessories: rear foot, front flange, clevis, trunnion

  • Feature: Heavy-duty tie rod design, high thrust output, robust structure for long-stroke heavy load

  • Application: Large clamping fixtures, pneumatic presses, heavy material pushing, waste handling, large packaging machinery, big automation transfer equipment

Brief comparison

  • 1315: ISO15552 round tube tie rod, only Ø250 / Ø320 super large bore

  • 1319 /1320 /1321: Standard square barrel ISO15552 cylinder, bores Ø32–200

  • 1500: UNITOP short-stroke compact pancake cylinder

  • 1200: ISO6432 micro stainless steel cylinder
