Introduction

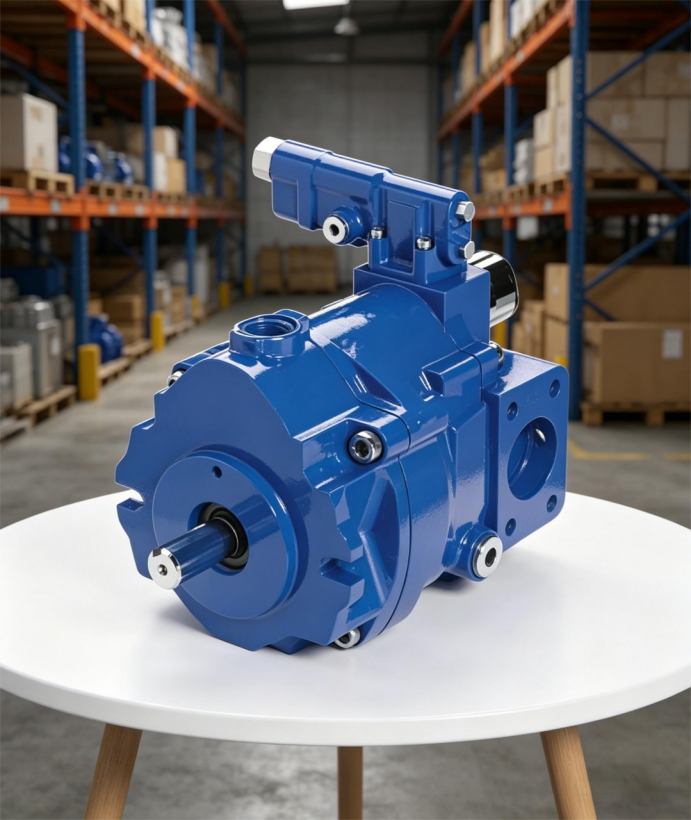

M Series pumps are open circuit,axial piston designs.A variety of controls provides the ability to match the pumps to each application.
A strong,proven rotating group allows the pumps to handle pressures to 280 bar(4000 psi)continuous and320 bar(4600 psi)intermittent-with less maintenance cost.Each frame can also contain a 230 bar(3300 psi)higher flow rotating group that provides additional application flexibility.High-load bearings and a stiff drive shaft help provide a pump life of 30,000 hours(@65%rated pressure),reducing operating costs and extending machine life.
M Series pumps feature a saddle-type yoke with steel-backed polymer bearings.The stiff yoke reduces deflection and allows even loading of bearings,improving life.A single control piston reduces loading on the yoke,resulting in reduced pump size that allows installation in tighter locations.
M Series pumps operate at a level of quietness that exceeds the requirements of today's demanding industrial conditions.The pumps feature a unique three-piece envelope(flange,housing and valve block)specifically created for low fluid-borne and structure-borne noise levels.Another pump feature-a bimetaltiming plate-improves pump filling characteristics that,in turn,reduces fluid-borne noise and extends pump life.
An adjustable maximum stop provides a means of tuning flow to your system,while gauge ports allow monitoring of inlet and outlet conditions.These standard features reduce system complexity and cost.
Mounting flanges are offered in SAE and ISO con-figurations,and ports are offered in SAE,ISO,and BSPP in both tube and flange versions.This provides a wide variety of installation opportunities for global machine design.
Side-or end-ported models are available to facilitate plumbing and help fit the pump to your machine space needs.Multiple drain ports allow many mounting orientations,reducing installed costs.
M Series pumps are capable of operating with many types of hydraulic fluids used in industrial and mobile systems.High-water-content and phosphate ester fluids can be accommodated,in addition to the typical petroleum based and synthetic fluids.
With an M Series pump you can have smaller and quieter power units at higher pressures,using higher speed(1500 and 1800 r/min)electric motors.Your systems willhave lower vibration levels on the system piping,helping to ensure a leak-free system.
Typical Applications
Metal shears
Stamping presses
Material conveyors
Automotive transfer lines
Process industry machines
Clamping fixtures
Load/unload heavy robots
Fight simulators
Entertainment rates
Tube forming and bending
Plastic injection molding
Blow molding machines
Meta die casters
Features and Benefits
Long pump life
Quiet pump operation
Inlet and outlet gauge ports
and adjustable maximum displacement stops-standard
Astonishingly low 4%
pressure ripple
Low installed and operating costs
Reduced maintenance
Flexibility in machine design
Compact size saves space
Design promotes leak-free
Models:
PVM018 PVM020 PVM045 PVM050 PVM057 PVM063 PVM074 PVM081 PVM098 PVM106 PVM131 PVM141
PVM0180000000500C2820000000A
PVM018ER01AE01AAA28000000A0A
PVM018ER01AE01AAB28110000A0A
PVM018ER01AS01AAB23110000A0A
PVM018ER01AS02AAA28000000A0A
PVM018ER01AS02AAC07200000A0A
PVM018ER01AS02AAC23110000A0A
PVM018ER01AS02AAC2811000000A
PVM018ER02AE01AAA28000000A0A
PVM018ER02AE01AAB25200000A0A
PVM018ER02AS01AAA28000000A0A
PVM018ER02AS01AAC28110000A0A
PVM018ER02AS02AAA28000000A0A
PVM018ER02AS02AAC28200000A0A
PVM018ER02AS05AAC28200000A0A
PVM018ER02AS05AAC28200000AGA
PVM018ER03AE01AAB28200000A0A
PVM018ER03AE05AAA07000000A0A
PVM018ER04AS02AAA28000000A0A
PVM018ER04BS04AAA28000000A0A
PVM018ER05CS02AAC28110000A0A
PVM018ER06CS01AAA2800000AA0A
PVM018ER07CS01AAB23200000A0A
PVM018ER07CS02AAB28110000A0A
PVM018ER17BS05AAA28000000A0A
PVM018ER17DS04AAA2800000HA0A
PVM018ER17DS05AAC2314000A00A
PVM018MR03AS01AAC28110000A0A
PVM020ER01AS01AAA07000000A0A
PVM020ER01AS02AAA07000000A0A
PVM020ER01AS02AAC07200000A0A
PVM020ER02AE01AAA07000000A0A
PVM020ER02AE01AAA23000000A0A
PVM020ER02AS02AAC23240000A0A
PVM020ER05CS01AAA23000000A0A
PVM020ER05CS01AAB23110000A0A
PVM020ER05CS01AAC23110000A0A
PVM020ER07CS01ABB2320000000A
PVM020ER07CS02AAB23200000A0A
PVM020ER07CS02AAC2320000AA0A
PVM020ML03AS01ABA23000000A0A
PVM020MR04AE05AAB23110000A0A
PVM045EL06CS02AAA28000000A0A
PVM045ER05CE01AAA28000000A0A
PVM045ER05CE01AAB28110000A0A
PVM045ER05CE0200A23000000A0A
PVM045ER05CE02AAA07000000A0A
PVM045ER05CE02AAA28000000A0A
PVM045ER05CE04AAA28000000A0A
PVM045ER05CE05AAA07000000A0A
PVM045ER05CS01AAA28000000A0A
PVM045ER05CS01AAA2800000AA0A
PVM045ER05CS01AAC2811000000A
PVM045ER05CS0200C2320000CA0A
PVM045ER05CS0200C28110000A0A
PVM045ER05CS02AAA07000000A0A
PVM045ER05CS02AAA28000000A0A
PVM045ER05CS02AAB21110000A0A
PVM045ER05CS02AAB28110000A0A
PVM045ER05CS02AAC28110000A0A
PVM045ER05CS02AAC28200000A0A
PVM045ER05CS02ASA2800000AA0A
PVM045ER05CS04AAA28000000A0A
PVM045ER05CS05AAB28110000A0A
PVM045ER06CS02AAA28000000A0A
PVM045ER06CS02AAB21110000A0A
PVM045ER06CS02AAB28110000A0A
PVM045ER06CS02AAC2320000AA0A
PVM045ER06CS02AAC28110000A0A
PVM045ER06CS02AAC2811000DA0A
PVM045ER06CS05AAC28200000A0A
PVM045ER06CS05AAC28200000AGA
PVM045ER07CS02AAC28110000A0A
PVM045ER07CS02AAC2811000AA0A
PVM045ER07CS02AAC28200000A0A
PVM045ER07DE05AAA23000000A0A
PVM045ER08CS02AAC28110000A0A
PVM045ER08CS05AAA28000000AGA
PVM045ER17DS05AAA0700000AA0A
PVM045ER17DS05AAB2311000CA0A
PVM050EL07CS01AAB2320000AA0A
PVM050ER05CS02AAA07000000A0A
PVM050ER05CS02AAA0700000AA0A
PVM050ER05CS02AAC21110000A0A
PVM050ER06CS02AAC07200000A0A
PVM050ER07CS01AAB2320000AA0A
PVM050ER07CS02AAA07000000A0A
PVM057ER09EE02AAB10110000A0A
PVM057ER09EE02AAC23110000A0A
PVM057ER09ES02AAA28000000A0A
PVM057ER09ES02AAC07200000A0A
PVM057ER09GS0200A0700000C00A
PVM057ER09GS02AAA07000000A0A
PVM057ER09GS02AAA0700000AA0A
PVM057ER09GS02AAA28000000A0A
PVM057ER09GS02AAA28000000AGA
PVM057ER09GS02AAB2811000AA0A
PVM057ER09GS02AAC28110000A0A
PVM057ER09GS02AAC28200000A0A
PVM057ER09GS02AAC2820000CA0A
PVM057ER09GS02AAE00200000A0A
PVM057ER09GS04AAC28200000A0A
PVM057ER09GS04AAC28200000AGA
PVM063ER09EE01AAA07000000A0A
PVM063ER09EE01AAC23200000A0A
PVM063ER09EE02AAA21000000A0A
PVM063ER09ES02AAA07000000A0A
PVM063ER09ES02AAA21000000A0A
PVM063ER09ES02AAC07200000A0A
PVM063ER09GS02AAA23000000A0A
PVM063ER09GS02AAC23110000A0A
PVM063ER11GS02AAA23000000A0A
PVM0740000000200A0700000000A
PVM074ER09ES02AAA28000000A0A
PVM074ER09ES02AAC07200000A0A
PVM074ER09ES02AAC23200000A0A
PVM074ER09GS02AAA07000000A0A
PVM074ER09GS02AAA23000000A0A
PVM074ER09GS02AAA28000000A0A
PVM074ER09GS02AAA2800000CA0A
PVM074ER09GS02AAB28200000A0A
PVM074ER09GS02AAC18200000A0A
PVM074ER09GS02AAC28110000A0A
PVM074ER09GS02AAC28200000A0A
PVM074ER09GS02AAC28240000A0A
PVM074ER09GS02AAE0020000AA0A
PVM074ER09GS04AAA28000000A0A
PVM074ER09GS04AAC282000000GA
PVM074ER09GS04AAC28200000A0A
PVM074ER09GS04AAC28200000AGA
PVM074ER10ES02AAB28110000A0A
PVM074ER10GS02AAC2824000EA0A
PVM074ER10GS02AAE0020000EA0A
PVM074ER11GS02AAC28240000A0A
PVM074ER19FS04AAA28000000A0A
PVM074ER19FS04AUF0020000000A
PVM081ER09ES02AAA23000000A0A
PVM081ER09ES02AAC07200000A0A
PVM081ER09ES02AAC23200000A0A
PVM081ER09GS02AAA23000000A0A
PVM081ER09GS02AAC07200000A0A
PVM081ER09GS02AAC2320000000A
PVM081ER09GS02AAC23200000A0A
PVM081ER09GS04AAA23000000A0A
PVM098EL09ES02AAC07200000A0A
PVM098EL09ES02AAC0720000EA0A
PVM098EL10GS02AAC0720000EA0A
PVM098EL11ES02AAC07200000A0A
PVM098EL11ES02AAC28200000A0A
PVM098EL11GS02AAC07200000A0A
PVM098ER09ES02AAC07200000A0A
PVM098ER09ES02AAC0720000EA0A
PVM098ER09ES02AAC23110000A0A
PVM098ER09GS02AAA07000000A0A
PVM098ER09GS02AAA28000000A0A
PVM098ER09GS02AAC28110000A0A
PVM098ER09GS02AAC28200000A0A
PVM098ER09GS02AAE00200000A0A
PVM098ER09GS02ASA28000000A0A
PVM098ER09GS04AAA28000000A0A
PVM098ER09GS04AAC282000000GA
PVM098ER09GS04AAC28200000A0A
PVM098ER09GS04AAC28200000AGA
PVM098ER10GS02AAA2300000AA0A
PVM098ER10GS02AAA28000000A0A
PVM098ER10GS02AAA2800000EA0A
PVM098ER10GS02AAB28110000A0A
PVM098ER10GS02AAC0720000EA0A
PVM098ER10GS02AAE0020000EA0A
PVM098ER10GS04AAB28110000A0A
PVM098ER11ES02AAA23000000A0A
PVM098ER11ES02AAC07200000A0A
PVM098ER11ES02AAC28200000A0A
PVM098ER11GS02AAA28000000A0A
PVM098ER11GS02AAC07200000A0A
PVM098ER12ES04AAB28200000A0A
PVM098ER12GS02AAC2824000EA0A
PVM098ER18HS04AAA23000000A0A
PVM098ER19FS04AAA28000000A0A
PVM106ER09GS02AAA07000000A0A
PVM106ER09GS02AAA23000000A0A
PVM106ER09GS02AAC23200000A0A
PVM106ER09GS02AAE00200000A0A
PVM106ER09GS02ASF00200000A0A
PVM106ER10GS02AAF0020000EA0A
PVM106ER11GS02AAF00200000A0A
PVM131EL09ES02AAC07200000A0A
PVM131EL11ES02AAC28200000A0A
PVM131EL11GS02AAC07200000A0A
PVM131EL12ES02AAC2820000DA0A
PVM131ER09ES02AAC07200000A0A
PVM131ER09GS02AAA28000000A0A
PVM131ER09GS02AAC23200000A0A
PVM131ER09GS02AAE00200000A0A
PVM131ER10GS02AAA28000000A0A
PVM131ER10GS02AAB2320000EA0A
PVM131ER10GS02AAB28110000A0A
PVM131ER10GS02AAC28200000A0A
PVM131ER10GS04AAA28000000A0A
PVM131ER10GS04AAC282000000GA
PVM131ER10GS04AAC28200000A0A
PVM131ER10GS04AAC28200000AGA
PVM131ER11ES02AAC28200000A0A
PVM131ER11GS02AAC07200000A0A
PVM131ER12GS02AAA2800000BA0A
PVM131ER13GS02AAA07000000A0A
PVM131ER13GS02AAA28000000A0A
PVM131ER13GS02AAC2820000EA0A
PVM131ER13GS02AAF0020000EA0A
PVM131ER13JS02AAA21000000A0A
PVM141ER09ES02AAA23000000A0A
PVM141ER09ES02AAC07200000A0A
PVM141ER09ES02AAC23200000A0A
PVM141ER09GS02AAA23000000A0A
PVM141ER09GS02AAE00200000A0A
PVM141ER10GS02AAA07000000A0A
PVM141ER10GS02AAA23000000A0A
PVM141ER10GS02AAA2300000EA0A
PVM141ER10GS02AAC23200000A0A
PVM141ER10GS02AAE00200000A0A
PVM141ER10GS02AAF00200000A0A
PVM141ER11GS02AAA07000000A0A
PVM141ER12GS02BEB2820000000A
PVM141ER13GS02AAA0700000EA0A
PVM141ER13GS02AAE00200000A0A
PVM141ER13GS02AAF0020000EA0A
PVM141MR12GS04AAC21200000A0A
