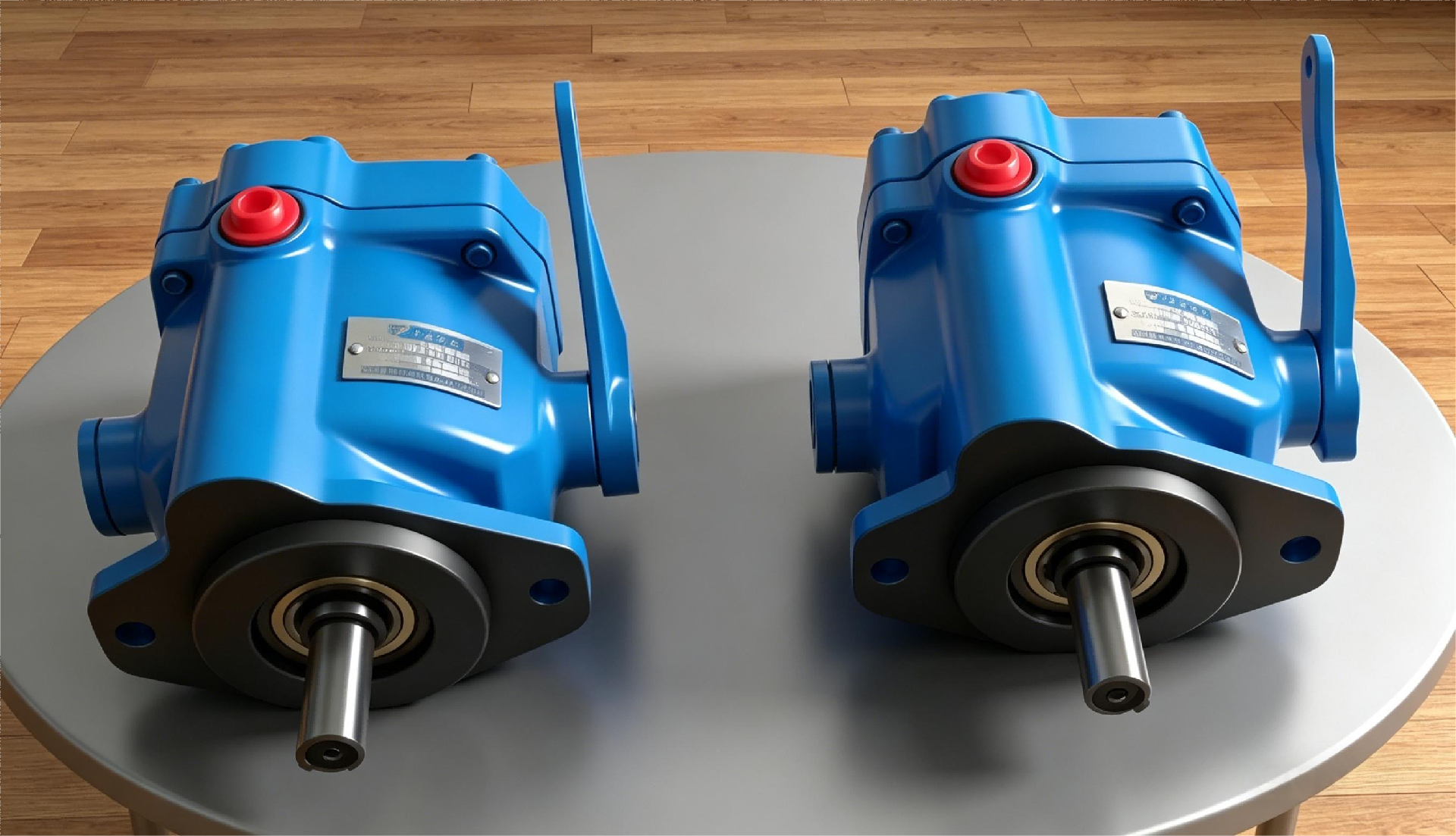

Basic Characteristics
Type .......................................................Axial piston pumps
Operating pressure.................................up to 210 bar (3000 psi)
Displacement.........................................10,5 to 197,5 cm .3/r (0.64 to 12 in3/r)
Drive speed ...........................................up to 3600 r/min
General Description
Ø Both fixed and variable displacement models make up this range of axial piston pumps. Their high performance ratings and efficiencies are achieved with a variety of hydraulic fluids. Fixed displacement models are noted for their volumetric and mechanical efficiencies.
Ø Variable displacement models can closely match pressure and/or flow demand with a control selected from:
Ø Pressure compensator with or without a remote control facility.
Ø Pressure compensator with adjustable displacement control.
Ø Load sensing compensator.
Ø Mechanical (lever) control.
Ø Handwheel control
Pressure and speed limmitted
Basic model designation | Geometric displacement,cm3/r (in3/r) | Maximum shaft speed (r/min) | Maximum outlet pressure,bar (psi) | ||||
Anti-wear hydraulic oil | Water-in—oil emulsion (40%/60%) | Water-glycol | Anti-wear hydraulic oil | Water glycol | Water-in—oil emulsion (40%/60%) | ||
PFB5 | 10,55 (0.64) | 3600 | 1800 | 1800 | 210 (3000) | 175 (2500) | 175 (2500) |
PFB10 | 21,10 (1.29) | 3200 | 210 (3000) | ||||
PFB20 | 42,80 (2.61) | 2400 | 175(2500) | ||||
PVB5 | 10,55 (0.64) | 1800 | 1800 | 1800 | 210 (3000) | 140 (2000) | 140 (2000) |
PVB6 | 13,81 (0.84) | 140 (2000) | 100 (1500) | 100 (1500) | |||
PVB10 | 21,10 (1.29) | 210 (3000) | 140 (2000) | 140 (2000) | |||
PVB15 | 33,00 (2.01) | 140 (2000) | 100 (1500) | 100 (1500) | |||
PVB20 | 42,80 (2.61) | 210 (3000) | 140 (2000) | 140 (2000) | |||
PVB29 | 61,60 (3.76) | 140 (2000) | 100 (1500) | 100 (1500) | |||
PVB45 | 94,50 (5.76) | 210 (3000) | 140 (2000) | 140 (2000) | |||
PVB90 | 197,50 (12.0) | 1800 | 1200 | 1200 | 210 (3000) | 140 (2000) | 140 (2000) |
PVB Series Partial Models:
PVB10-FRS-32-CVP-11-PRC
PVB10-FRSX-31-CM-11-PRC
PVB10-FRSY-30-11-GK
PVB10-FRSY-31-C-11
PVB10-FRSY-31-CC-11
PVB10-FRSY-41-C-12
PVB10-FSXV-31-CF-11
PVB10-LDY-31-M-10
PVB10-LS-31-C-11
PVB10-LS-31-C-11-PRC
PVB10-RDY-31-ML-10
PVB10-RS-20-CC-11-PRC
PVB10-RS-30-C-11-PRC
PVB10-RS-31-C-11-PRC
PVB10-RS-31-CC-11-PRC
PVB10-RS-31-CC-11-PRC/V
PVB10-RS-31-CC-PRC
PVB10-RS-31-CE-11-PRC
PVB10-RS-31-CM-11
PVB10-RS-31-CV-11-PRC
PVB10-RSY31C11
PVB10-RSY-31-C-11
PVB10-RSY-31-CC-11
PVB10-RSY-31-CM-11
PVB10-RSY-31-CMC11
PVB10-RSY-32-C-11
PVB10-RSY-32-C-12
PVB15-LSY-21-C-11
PVB15-LSY-31-C
PVB15-LSY-31-C-11
PVB15-LSY-31-CC-11
PVB15-LSY-31-CG-11
PVB15-LSY-31-CM-11
PVB15-LSY-31-CVP-11
PVB15-LSY-40-C-11
PVB15-LSY-40-CC-12
PVB15-LSY-41-C-12
PVB15-RSY-31-CC-11
PVB15-RSY-31-CC-PRC
PVB15-RSY-31-CM-11
PVB15-RSY-41-C-12
PVB15-RSY-41-CC12
PVB15-RSY-41-CC-12
PVB15-RSY-41-CC-1202-341725
PVB15-RSY-41-CG-30-S185
PVB15-RSY-41-CM-12
PVB15-RSY-41-CM-12-S30
PVB20-RC-70
PVB20-RS-20C-11
PVB20-RS-20-C-11
PVB20-RS-20-C-11-PRC
PVB20-RS-20-CC-11
PVB20-RS-20-CC-11-PRC
PVB20-RS-20-CM-11
PVB20-RS-20-CVP-11
PVB20-RS-22-C-11-PRC
PVB20-RS-22-CC-11-PRC
PVB29-FRS-20-CM-11-S94
PVB29-FRS-20-CMC-11
PVB29-FRSY-20-CMC-11
PVB29-LC-70
PVB29-LS-20-C-11
PVB29-LS-20-CG-11
PVB29-LS-20-CM-11
PVB29-LS-20-CMC-11
PVB29-LSG-20-C-11
PVB29-LSY-20-C-11
PVB29-LSY-21-C-11
PVB29-RC-70
PVB29-RS-20-C-11
PVB29-RS-20-C-11-PRC
PVB29-RS-20-C-11-PRC/V
PVB29-RS-20-CC-11
PVB29-RS-20-CC-11-PRC
PVB29-RS-20-CG-11
PVB29-RS-20-CG-11-PRC
PVB29-RS-20-CG11S30
PVB29-RS-20-CM-11
PVB29-RS-20-CMC-11
PVB29-RS-20-CMC-11-JA
PVB29-RS-22-C-11-PRC
PVB29-RS-22-CG-11-PRC
PVB45-ARC-20-CA-11
PVB45-ARC-A-70
PVB45-ARSF-20-CA
PVB45-ARSF-20-CA-11
PVB45-ARSF-20-CA-12
PVB45-FLSF-20-C-11-PRC
PVB45-FLSF-20-CVP-11-PRC
PVB45-FRC-70
PVB45-FRS-20-CC-11
PVB45-FRSF-20-C
PVB5-FLSWY-21-C-11
PVB5-FLSWY-21-C-12
PVB5-FRDY-20-M-10
PVB5-FRDY-21-M-10
PVB5-FRS-20-C-11
PVB5-FRSXY-40-CM-12
PVB5-FRSY-20-C-11
PVB5-RS-20-CCG-11-PRC
PVB5-RS-20-CG-11-PRC
PVB5-RS-31-CC-11-PRC
PVB5-RSW-20-C-11
PVB5-RSW-20-C-11-PRC
PVB5-RSW-20-CC-11-PRC
PVB5-RSW-20-CC-Y112
PVB5-RSW-20-CM-11-PRC
PVB5-RSW-20-CM-Y90
PVB5-RSW-20-C-Y100
PVB6-FRSY-20-CMC-11
PVB6-LS-20-C11
PVB6-LS-20-C-11-PRC
PVB6-LS-20-CC-11-PRC
PVB6-LS-20-CM-Y90
PVB6-LS-20-CM-Y90L-4
PVB6-LS-20-CV-11-PRC
PVB6-LS-20-C-Y90
PVB6-LSW-20-CC-11-PRC
PVB6-LSW-20-CG-11-PRC
PVB6-RDY-21-ML-10
PVB6-RS-20-C-11
PVB6-RS-21-C-11
PVB6-RS-40-CM-12
PVB6-RSW-20-CM-11
PVB6-RSW-20-CM-11-PRC
PVB6-RSW-20-CM-11-PRC/V
PVB6-RSW-20-CM-PRC/V
PVB6-RSW-21-C-11-PRC
PVB6-RSW-21-CC-11-PRC
PVB6-RSY-20-CMC-11
PVB6-RSY-20-CVP-11
PVB6-RSY-21-C-11
PVB6-RSY-21-CC-11
PVB6-RSY-21-CC-12
PVB6-RSY-21-CM-11
PVB6-RSY-21-CMC-11
PVB6-RSY-31-C-11
PVB6-RSY-31-CM-11
PVB6-RSY-31-C-M11
PVB6-RSY-40-C12
PVB6-RSY-40-C-12
PVB6-RSY-40-CM-12
PVB6-RSY-40-CM-12-S30
PVB6-YSW-21-CM-11-PRC
