Product Details

PNEUMAX 1390,1391,1392 belong to ECOLIGHT ISO15552 tie rod cylinder family

  • Standard: ISO 15552 / VDMA

  • Bore sizes: Ø32, 40, 50, 63, 80, 100, 125, 160, 200 mm

  • Model definition

    ✅ 1390: Magnetic piston, hard chromed piston rod

    ✅ 1391: Magnetic piston, AISI304 stainless steel rod (corrosion resistant)

    ✅ 1392: Non‑magnetic piston, hard chromed rod (no reed sensor)

  • Structure: Lightweight extruded aluminium barrel, tie rod construction, double acting, adjustable air cushion at both ends

  • Port thread: G1/4 (32–63), G3/8 (80–100), G1/2 (125–200)

  • Pressure: 0.5 ~ 10 bar

  • Seal: NBR standard; PUR / FKM optional

  • Temperature: -5°C ~ +70°C

  • Optional accessory: EPDM protective bellows (rod cover) for dusty, outdoor, washdown environment

  • Medium: Filtered compressed air, non‑lubricated operation supported

  • Mounting: Full ISO15552 mounting kits: foot, front flange, rear clevis, trunnion

  • Optional ATEX variant available

  • Application: Packaging, conveyor, clamping, pick & place, general industrial pneumatic automation, cost‑sensitive ISO cylinder replacement

STANDARD STROKES (ALL)

From 0 to 150,every 25mm

From150 to 500,every 50mm

From500 to 1000,every 100mm

STOKE DEVIATION (ISO 15552)

BORE

STROKE

DEVIATION

32 - 40 - 50

500 MAX

+20

500 TO 1250

+3.20

63 - 80 - 100

500 MAX

+2.50

500 TO 1250

+40

125 - 160 - 200

500MAX

+40

500 TO 1250

+50

ORDERING CODE


Basic"01"

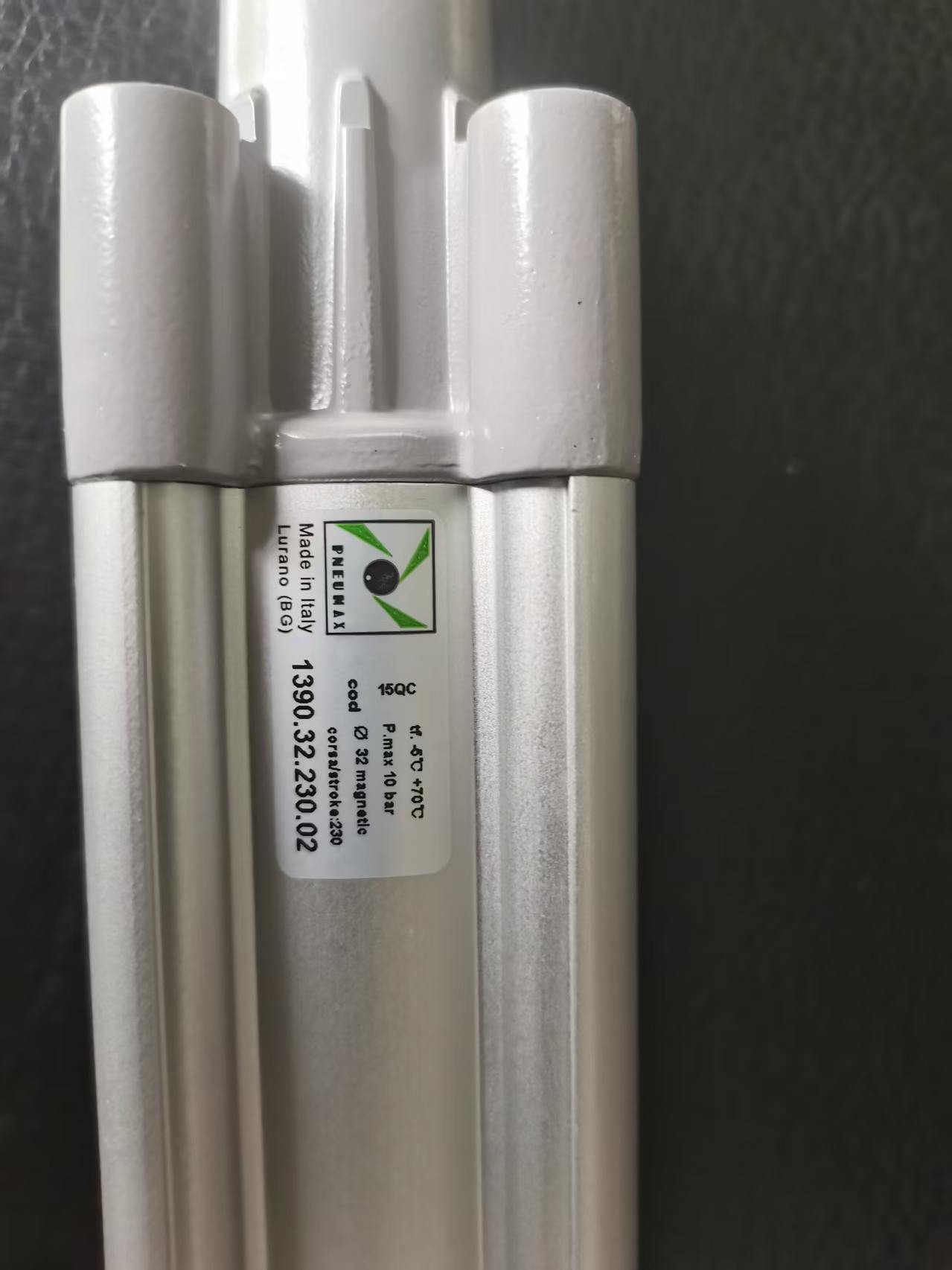

Ordering code 1390.Ø.stroke .01 Magnetic chromed rod

Ordering code 1391.Ø.stroke.01 Magnetic stainless steel rod

Ordering code 1392.Ø.stroke.01 Non magnetic chromed rod







Pull/Push version"02"

Ordering code1390.Ø.stroke.02 Magnetic chromed rod
Ordering code1391.Ø.stroke.02 Magnetic stainless steel rod
Ordering code1392.Ø.stroke.02 Non magnetic chromed rod







Tandem push with common rod "G"

Ordering code1390.Ø.stroke.GMagnetic chromed rod

Ordering code1391.Ø.stroke.GMagnetic stainless steel rod

Ordering code392.Ø.stroke.G Non magnetic chromed rod





Tandem push with independent rods "F"

Ordering code1390.Ø.stroke.stroke1.F Magnetic chromed rod

Ordering code1391.Ø.stroke.stroke1.F Magnetic stainless steel rod

Ordering code1392.Ø.stroke.stroke1.FNon magnetic chromed rod





Opposed tandem with common rods "D"

Ordering code1390.Ø.stroke.stroke1.D Magnetic chromed rod

Ordering code1391.Ø.stroke.stroke1.D Magnetic stainless steel rod

Ordering code1392.Ø.stroke.stroke1.D Non magnetic chromed rod





Tandem with opposed rods"E"

Ordering code1390.Ø.stroke.stroke1.E Magnetic chromed rod

Ordering code1391.Ø.stroke.stroke1.E Magnetic chromed rod

Ordering code1392.Ø.stroke.stroke1.E Non magnetic chromed rod



Bore: Ø32 - Ø40 - Ø50 - Ø63 - Ø80 - Ø100 - Ø125 - Ø160 - Ø200

Standard strokes

from 0 to 150 every 25 mm; from 150 to 500 every 50 mm; from 500 to 1000 every 100 mm

NOTE:

139_.Ø.stroke.    .P = Version with PUR seals

139_.Ø.stroke.    .K = Version with aluminium piston (from Ø32 to Ø100)

139_.Ø.stroke.    .PK =Version with PUR seals and aluminium piston (from Ø32 to Ø100)

139_.Ø.stroke.    .V =Version with FPM seals and aluminium piston

139_.Ø.corsa.    .R =Version with metallic rod scraper and aluminium piston (Ø32-Ø100)

139_.Ø.corsa.    .Q =Version with plastic rod scraper and aluminium piston (Ø32-Ø100)

139_.Ø.corsa.    .L =Version for low temperature and aluminium piston (-50°C) (Ø32-Ø100)
