Product Description
The AVENTICS Series ICS is a stainless steel cylinder with hygienic design with smooth surfaces, interlocking seals and cushioning screws prevents dirt pockets from the outset and guarantees optimum cleaning conditions.
Features
Ø 32 mm ... 100 mm
Max. stroke: 2500 mm
Clean design type
Ideal for wash-down applications
Suitable for use in food processing
Partial models
Round cylinder, Series ICS-D2-MR3
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected
- cylinder outer thread with mounting nut
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Round cylinder, Series ICS-D2-MP4
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected
- with rear end cover bushing
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Round cylinder, Series ICS-D2-MP5
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected

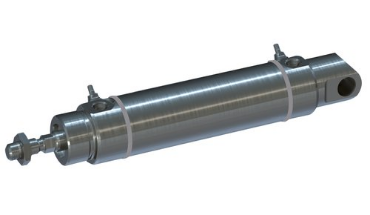

- with rear eye with spherical bearing
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Round cylinder, Series ICS-D2-MT1
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected
- with mounting bolts in front end cover MT1
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Round cylinder, Series ICS-D2-MT2
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected
- with mounting bolts in rear end cover MT2
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Round cylinder, Series ICS-D2-MH1
- Ø 32-100 mm
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- corrosion-protected
- with mounting holes position front
- suitable for use in food processing
| Standards ISO 6431 Working pressure min./max. 1 ... 10 bar Ambient temperature min./max. -25 ... 70 °C Medium temperature min./max. -25 ... 70 °C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ Pressure for determining piston forces 6.3 bar |
Notes:Not all information are shown.Contact Aventics engineers for assistance.
