COMPACT Turn-Act Rotary Actuators, low-profile vane-style pancake rotary pneumatic actuators. Single-vane design delivers zero-backlash rotary motion. Standard rotation angles: 90° and 180°, custom angles available. Main body extruded aluminium, stainless shaft option. Adjustable mechanical end stops for fine angular tuning. Operating pressure up to 100 psi, double-acting only. Built-in cushioning optional, integrated porting to eliminate external tubing. Cleanroom, low-outgassing seal variants available. CE certified. For medical diagnostic machines, pharmaceutical packaging, indexing fixtures, pick-and-place and laboratory automation, original COMPACT Automation USA
Family: Turn-Act vane rotary actuators
Core feature: single vane, zero backlash, ultra-flat pancake form
Compare: conventional rack & pinion rotary actuators have backlash and thicker housing
Full Torque, Zero Backlash Repeatable Motion.
Compact's Rotary Actuators have only one moving part which produces rotary motion with ZERO Backlash, 100% repeatability and continuous full torque.
Our actuatora utilize patented urethane seals which permit long cycle life and non-lube service.
Numerous switch and stroke sensors, adjustable stroke control, special fixed rotations, various shaft styles and materials, and many other options are available to address your specific application requirements.
|

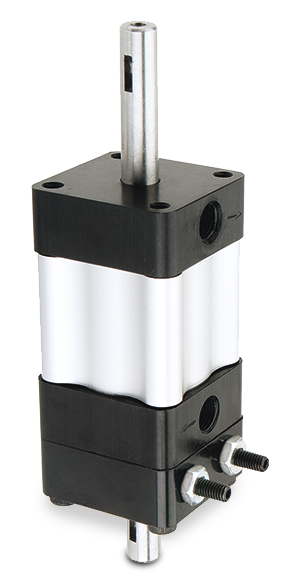

| Compact Actuator (Comp-Act) Series Comp-Act rotary actuator products whether used independently or with other fluid power motion control devices promise long term performance. |
|

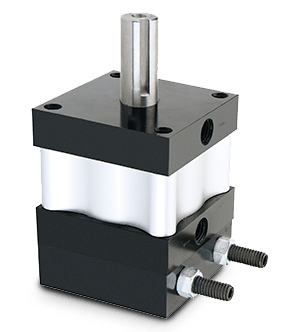

| Turn-Act Series Pneumatic Rotary Actuator Compact's Turn-Act brand Rotary Vane Actuators have only one moving part which produces rotary motion with ZERO Backlash, 100% repeatability and continuous full torque. |
|

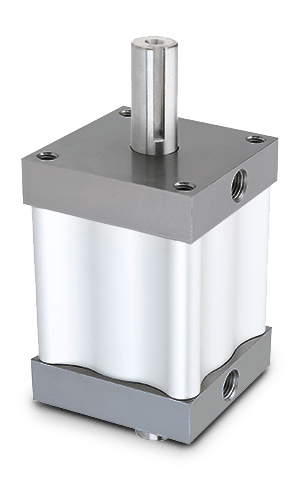

| Brute Rotary Vane Actuator Brute Series rotary vane actuators whether used independently or with other fluid power motion devices promise long term performance. |
|

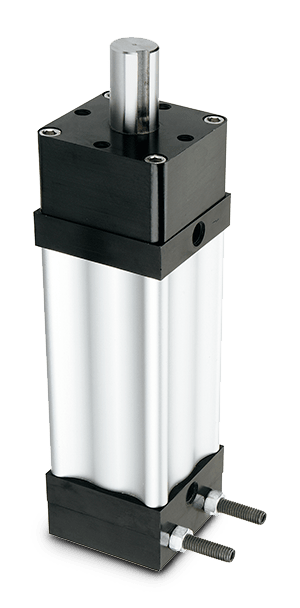

| OEM Series Rotary Air Actuator OEM Series rotary vane air actuator used independently or with other fluid power motion devices promises long term performance. |
|
| Turn-Dex Turn-Dex is a rotary actuator with an internal unidirectional clutch. The output shaft rotates in one direction only and remains at end of stroke while the actuator is reversed. |
Notes:Not all informations are shown.Contact Compact engineers for assistance.
