COMPACT Workholding Products, custom pneumatic workholding components built on the pancake cylinder platform, including pull clamps, workpiece support cylinders, locating pins, toggle clamps and integrated fixture modules. Double-acting design standard, single-acting and air-lock versions available. Body material anodized aluminium with stainless steel wetted options. Max operating pressure 100 psi, adjustable stroke and end stops. Custom jaw geometry, low-outgassing seals for cleanroom, pharmaceutical and medical applications. Multiple mounting patterns, integrated air porting to eliminate external tubing. CE certified. For precision fixture clamping, part support, locating and hold-down in lab automation, medical test equipment and small-batch machining, original COMPACT Automation USA

  • Family: Custom pancake-style pneumatic clamps, supports and locators

  • Core feature: ultra-low profile for tight fixture clearance

  • Compare: Destaco / Kosmek workholding clamps; COMPACT differentiates by pancake low-height custom build

Flexible and Precise Motion Control.

Compact workholding products are designed for use in industrial applications such as robotics, automated assembly and manipulator/tooling.

All units feature self-contained, double-acting Compact actuators. All models feature low unit weight, high output and compact size.


Magnetic Grippers

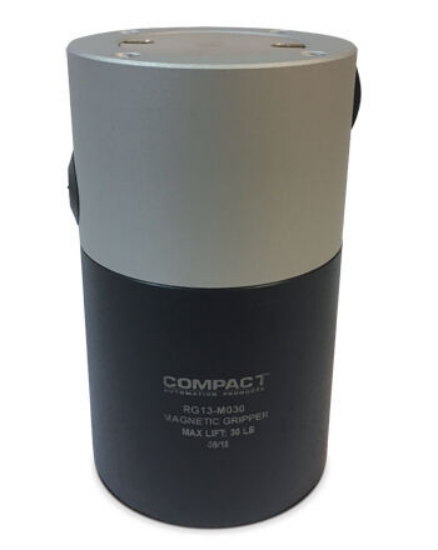

Compact magnetic grippers are great for picking up ferromagnetic materials such as iron or steel in applications where other types of grippers and vacuum cups are currently being utilized.


Angular Grippers

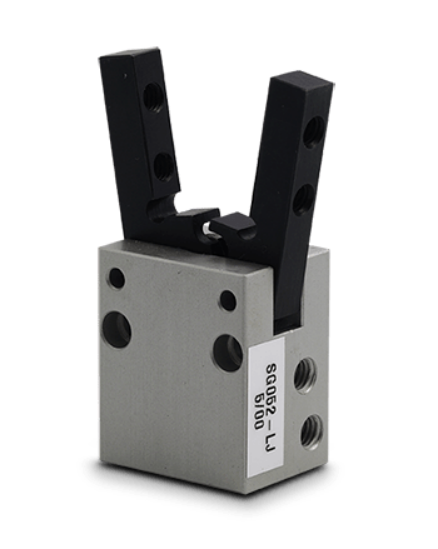

Our angular grippers represent the lowest cost design. The air cylinder is an integral component of the overall angular grippers length. The piston actuator pushes the cam, or yoke, forward, rocking/pivoting the jaws open.


Parallel Pneumatic Grippers

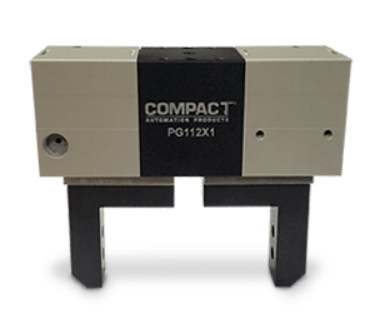

Parallel pneumatic gripper products from Compact represent a highly versatile and flexible design. The integral pneumatic cylinder pushes the parallel gripper jaws open. The parallel pneumatic gripper jaws slide along two hardened guide rods providing rigid, long lasting true parallel gripper motion. 


CI Series Intensifiers - Pneumatic Intensifier

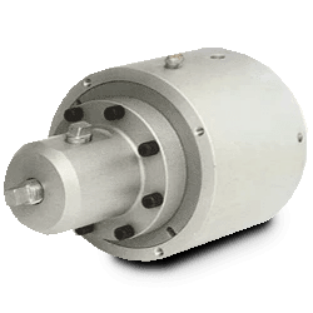

CI series Compact Intensifiers are simple generic boosters that utilize a large pneumatic piston to intensify oil pressure with a smaller piston. The Product range includes 24 models. All are designed to be highly space efficient and low weight. The pressure chamber features two large full flow ports for easy filling and bleeding.


Twist Cylinder (Pneumatic Clamp Cylinders)

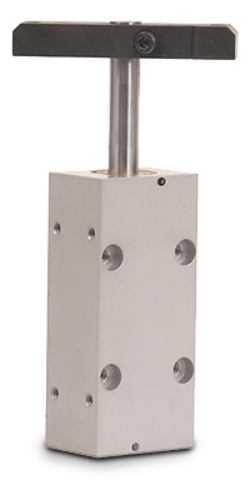

Twist Cylinders are linear motion cylinders with internal cams that provide 90º swing motion. Twist cylinders are ideal swing clamps for automated and semi-automated assembly.


Collet Closer

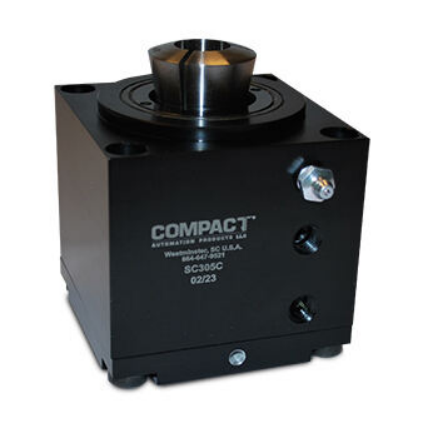

Collet closer are used worldwide in the metalworking industry for their high accuracy and high output gripping of tools and work pieces. Compact Automation Products has chosen 3 popular collet sizes: 1C, 3C and 5C to design our space efficient collet fixtures around.

Note:Not all informations are shown.Contact Compact engineers for assistance
