BANNER, QS30, QS30 photoelectric sensor, WORLD-BEAM, long range photoelectric, clear object senso

Download the universal directory in PDF format
Product Details

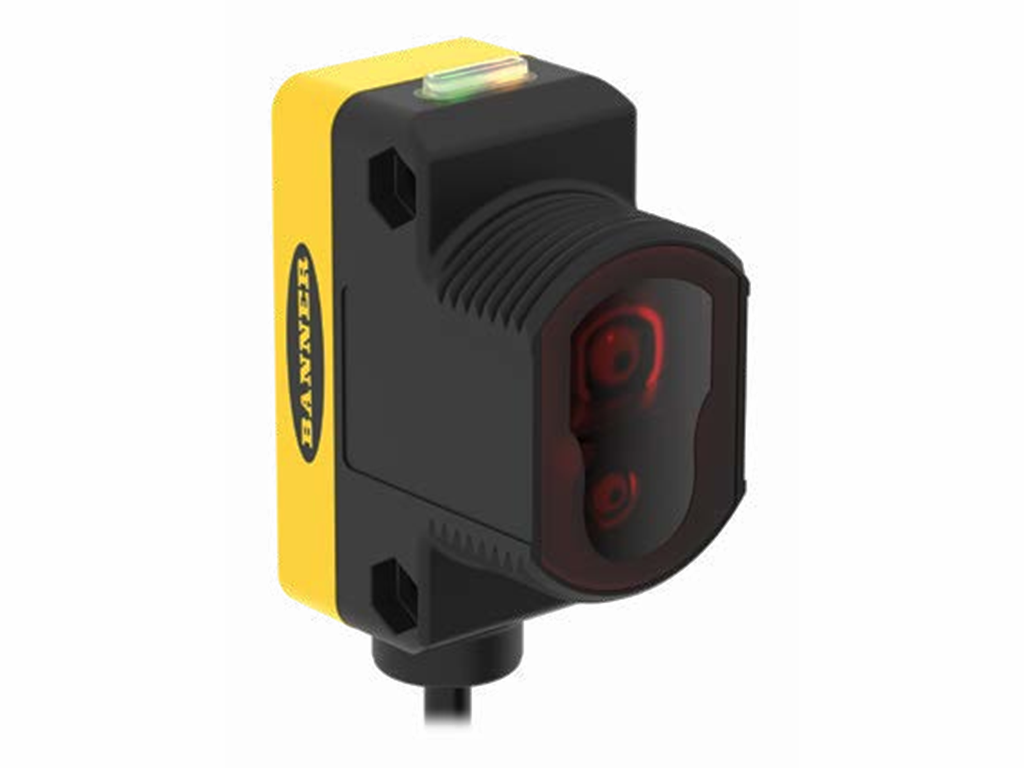

BANNER QS30 series WORLD-BEAM high-performance photoelectric sensor. Housing: ABS thermoplastic, 30mm mounting footprint. Available sensing modes: high-power opposed beam, polarized retro, non-polarized retro, diffuse, laser diffuse, fixed-field, adjustable-field, clear-object retroreflective (ELVC for transparent bottles/films). Power options:

  • DC version: 10–30 VDC, bipolar NPN + PNP complementary output

  • AC universal version: 12–250 VAC / 24–250 VAC, mechanical relay output Laser variants: Class1 / Class2 visible laser source for high-precision small target detection. Protection: IP67 standard, selected washdown versions IP69K, NEMA 4X. Connection: 2m / 9m PVC cable or 5-pin M12 quick disconnect. Light-on / dark-on selectable; 360° bright LED status indicator. IO-Link available on selected models.

NOTES

  • Model: QS30 (QS30LP, QS30ELVC, QS30AF, QS30FF, QS30H2O water detection variant)

  • Type: High-power long-range photoelectric sensor

  • Core difference vs QS18: QS30 much longer range, higher power, more special function options (transparent object, water detection); QS18 compact general-purpose

  • Common special model: QS30H2O for liquid/water detection, QS30ELVC for transparent components

Partial models below:

QS30ARXSH2OQ5

QS30ARXSH2OQ5

QS30RRXSH2OQ5

QS30RXH2OUQ5

QS30EXH2O

QS30FF600QPMA

QS30EDVW/30

QS30VR3FF200QPMA3

QS30VR3FF600QPMA3

QS30VR3RW/30

QS30LPQ

QS30FF400Q

QS30FF200Q

QS30FF600QPMA

QS30EXQ

QS30LDQ

QS30RRXQ

QS30ARXQ
