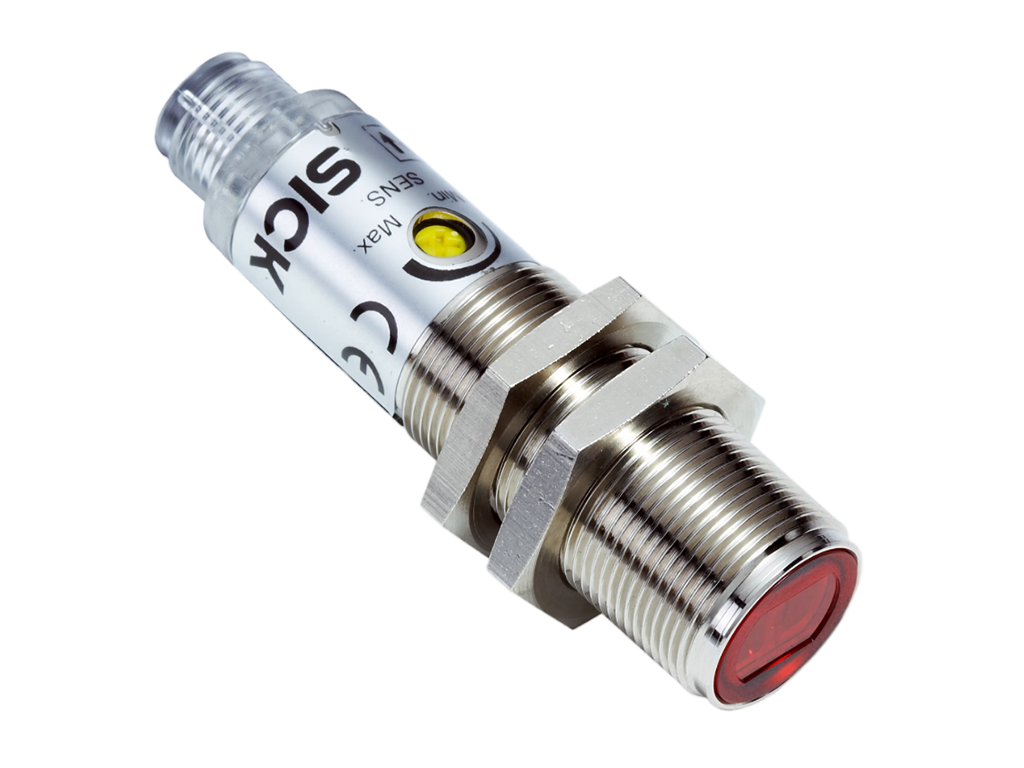

VTE180-2P42482
Features:
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69.8 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69.8 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm ... 1,100 mm 1) |
| Sensing range | 1 mm ... 800 mm 1) |
| Focus | Approx. 1.2° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 30 mm (800 mm) |
| Angle of dispersion | Approx. 1.2° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage UB | 10VDC…30VDC¹) |
| Ripple | ±10%²) |
| Current consumption | 30 mA³) |
| Switching output | PNP⁴) |
| Switching mode | Light/dark switching⁴) |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage PNP HIGH/LOW | Approx.Vs-1.8V/OV |
| Output current lmax. | ≤100 mA |
| Response time | ≤0.5ms⁵ |
| Switching frequency | 1,000Hz⁶) |
| Connection type | Male connector M12,4-pin |
| Circuit protection | A⁷) B⁸) D⁹ |
| Protection class | I |
| Weight | 47g |
| Housing material | Metal,Nickel-plated brass and PC |
| Optics material | Plastic,PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts(2x) |
| Ambient operating temperature | -25C...+55°℃ |
| Ambient temperature,storage | -40C...+70℃ |
| UL File No. | NRKH2.E300503&NRKH8.E300503 |

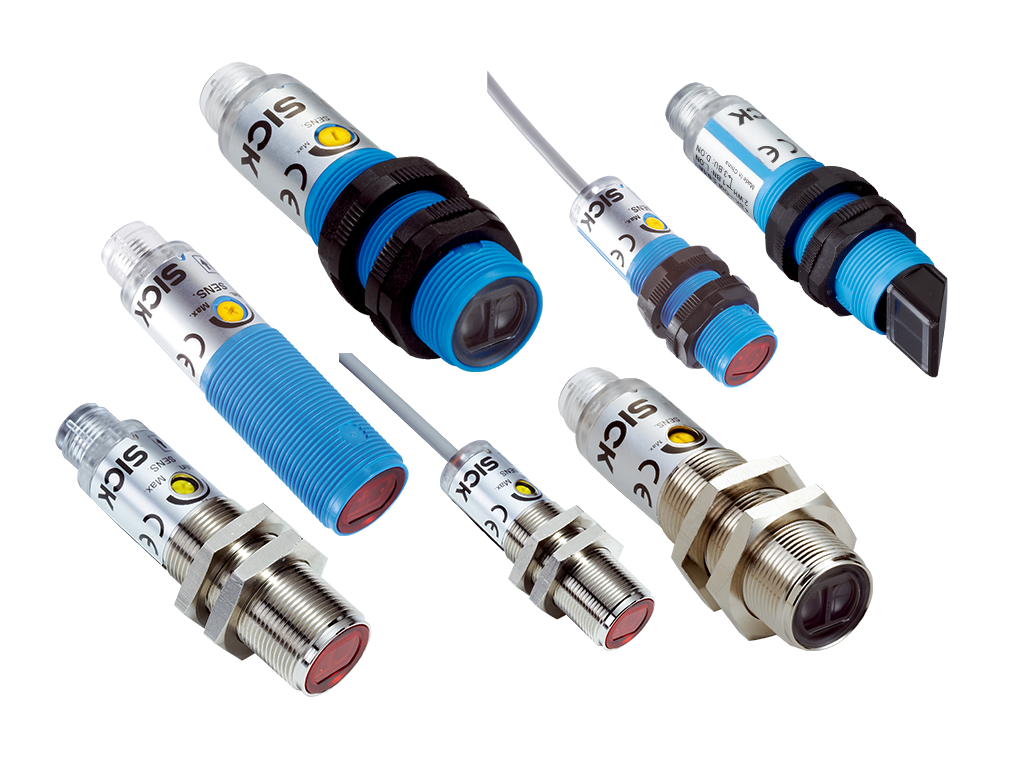

Other partial V180 type:
