YESTOOL carbide cutting tools, Korean Yestool indexable drill, Yestool KRUZ drill, Yestool X series drill insert, Yestool YTRI reamer, Yestool solid carbide end mill, Yestool ECO-Cutter

下载PDF格式的通用目录
产品详情

YESTOOL (YesTool Co., Ltd.) is a Korean professional manufacturer of cemented carbide cutting tools, established in 1994, ISO 9001 certified, well-known for hole-making tools

  • Core product portfolio

    ✅ Indexable insert drills: KRUZ-FSL / KRUZ-SL, YTDI-FSL, IDP / IDF / ID inserts, anti-vibration flange body, through coolant

    ✅ X Series drill inserts: patented conical helix point, reduce cutting load 20~30%, good for stainless steel & titanium alloy

    ✅ Solid carbide drills, reamers (YTRI series)

    ✅ Carbide end mills: YSET / YSEL standard & long shank, ball nose, graphite dedicated end mills, PVD TiAlN coating

    ✅ Turning inserts, milling cutter system ECO-Cutter

  • Substrate: Ultra-micro grain carbide (0.2~0.8μm, 13% Co), high toughness and wear resistance

  • Coating: PVD TiAlN, multi-layer CVD coating options

  • Cooling: Internal coolant supply for most drill bodies

  • Workpiece materials: Carbon steel, alloy steel, stainless steel, cast iron, titanium alloy, superalloy, graphite

  • Application: Automotive parts, mold, hydraulic components, aerospace, general precision CNC machining

  • Global export network covering Europe, America, Southeast Asia, Russia, Middle East etc

Special for steel design

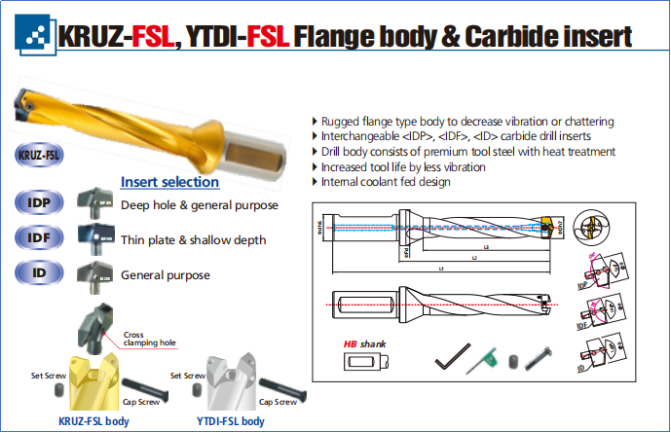

A. KRUZ-FSL,YTDI-FSL Flange body&carbide insert series


 The hole size range of this series is from ф8 ~ ф50.4,Each interval is 0.1mm.

YTDI080(ф0.8~ф0.84)YTDI085(ф0.85~ф0.89) YTDI090(ф0.90~ф0.94) YTDI095(ф0.95~ф0.99)~YTDI500(ф50~ф50.4)。KRUZ080(ф0.8~ф0.84)

KRUZ085(ф0.85~ф0.89) KRUZ090(ф0.90~ф0.94) KRUZ095(ф0.95~ф0.99)~KRUZ500(ф50~ф50.4)。

 YTDI-FSL Flange body total 94 intervals,from YTDI080 T/P/H/L FSL~YTDI500T/P/H/L FSL, such as

YTDI080TFSL YTDI085TFSL YTDI090TFSL~YTDI500TFSL。YTDI080PFSL YTDI085PFSL YTDI090PFSL~YTDI500PFSL。

YTDI080HFSL YTDI085HFSL YTDI090HFSL~YTDI500HFSL。YTDI080LFSL YTDI085LFSL YTDI090LFSL~YTDI500LFSL。

 KRUZ-FSL Series flange body similar as above YTDI-FSL

KRUZ080TFSL KRUZ085TFSL KRUZ090TFSL~KRUZ500TFSL。KRUZ080PFSL KRUZ085PFSL KRUZ090PFSL~KRUZ500PFSL。

KRUZ080HFSL KRUZ085HFSL KRUZ090HFSL~KRUZH500HFSL。KRUZ080LFSL KRUZ085LFSL KRUZ090LFSL~KRUZ500LFSL。

Note:T-3*D P-5*D H-7*D L-10*D( D means Depth of drilling hole)

 3 types of insert. Interchangeable inserts:ID,IDP,IDF

YTDI080T/P/H/L FLS(ф0.8~ф50.4,interval 0.1mm.So IDP,IDF,ID insert number is from IDP080~IDP504,IDF080~IDF504,IDF080~ID504,Total 425 of numbers,respectively。

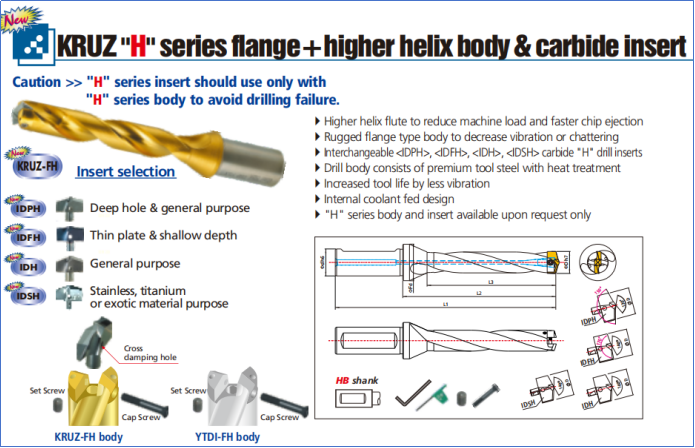

B. KRUZ“H" series,Flange body&carbide insert series


 The hole size range of this series is from ф12 ~ ф50.4,Each interval is 0.1mm.

 YTDI-FSL Flange body number si from YTDI120 T/P/H/L FSL~YTDI500T/P/H/L FSL as below:

YTDI120TFSL YTDI125TFSL YTDI130TFSL~YTDI500TFSL。YTDI120PFSL YTDI125PFSL YTDI130PFSL~YTDI500PFSL。

YTDI120HFSL YTDI125HFSL YTDI130HFSL~YTDI500HFSL。YTDI120LFSL YTDI125LFSL YTDI130LFSL~YTDI500LFSL。

 KRUZ-FSL Series flange body similar as above YTDI-FSL

KRUZ0120TFSL KRUZ125TFSL KRUZ130TFSL~KRUZ500TFSL。KRUZ120PFSL KRUZ125PFSL KRUZ130PFSL~KRUZ500PFSL。

KRUZ120HFSL KRUZ125HFSL KRUZ130HFSL~KRUZH500HFSL。KRUZ120LFSL KRUZ125LFSL KRUZ130LFSL~KRUZ500LFSL。

 4 TYPES OF INSERT:IDPH,IDFH,IDH,IDSH ,Corresponding number IDPH120~IDPH504,IDFH120~IDFH504,IDH120~IDH504,IDSH120~IDSH504,total 385 numbers, respectively。

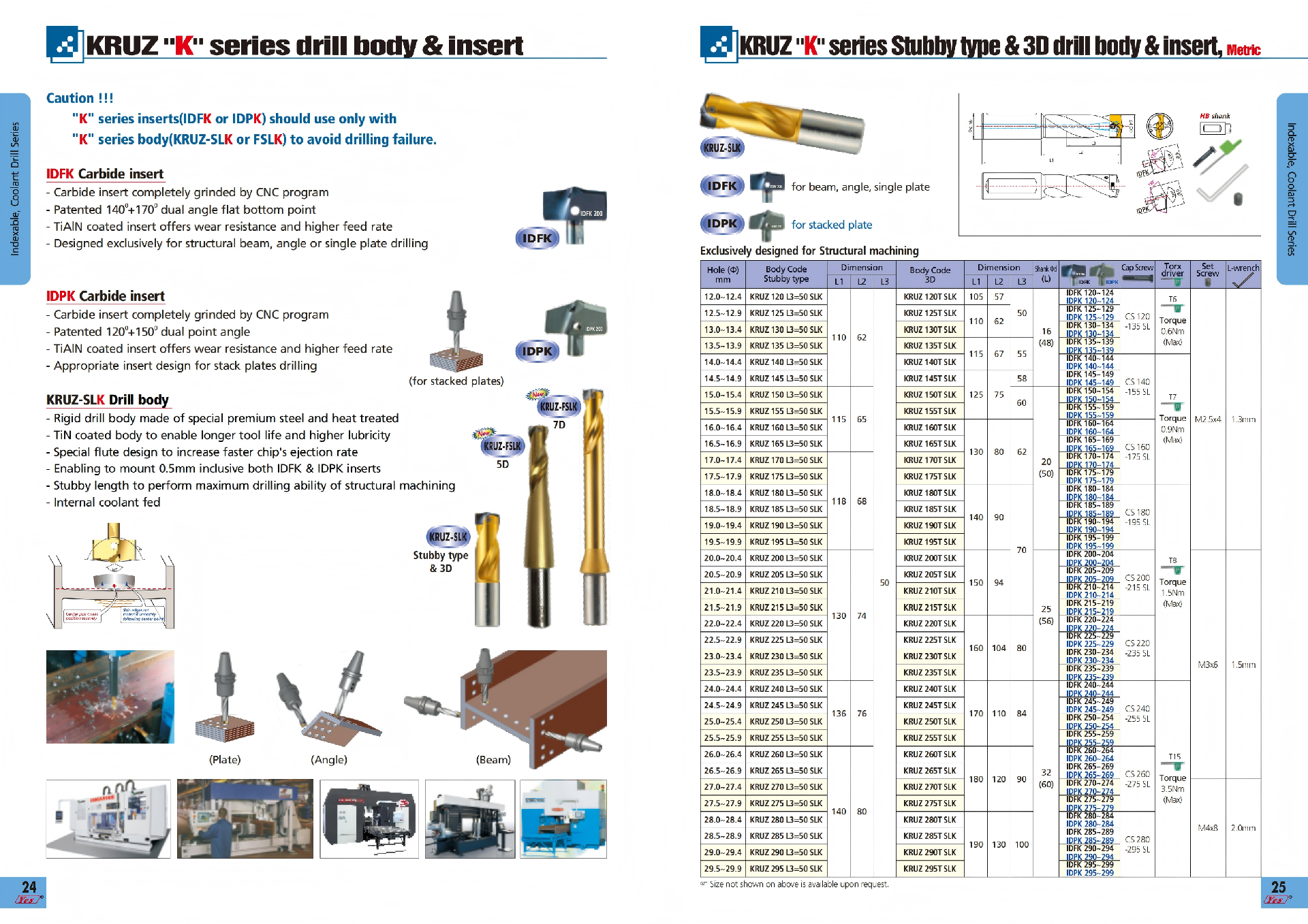

C. KRUZ"K"series,Flange body&carbide insert series

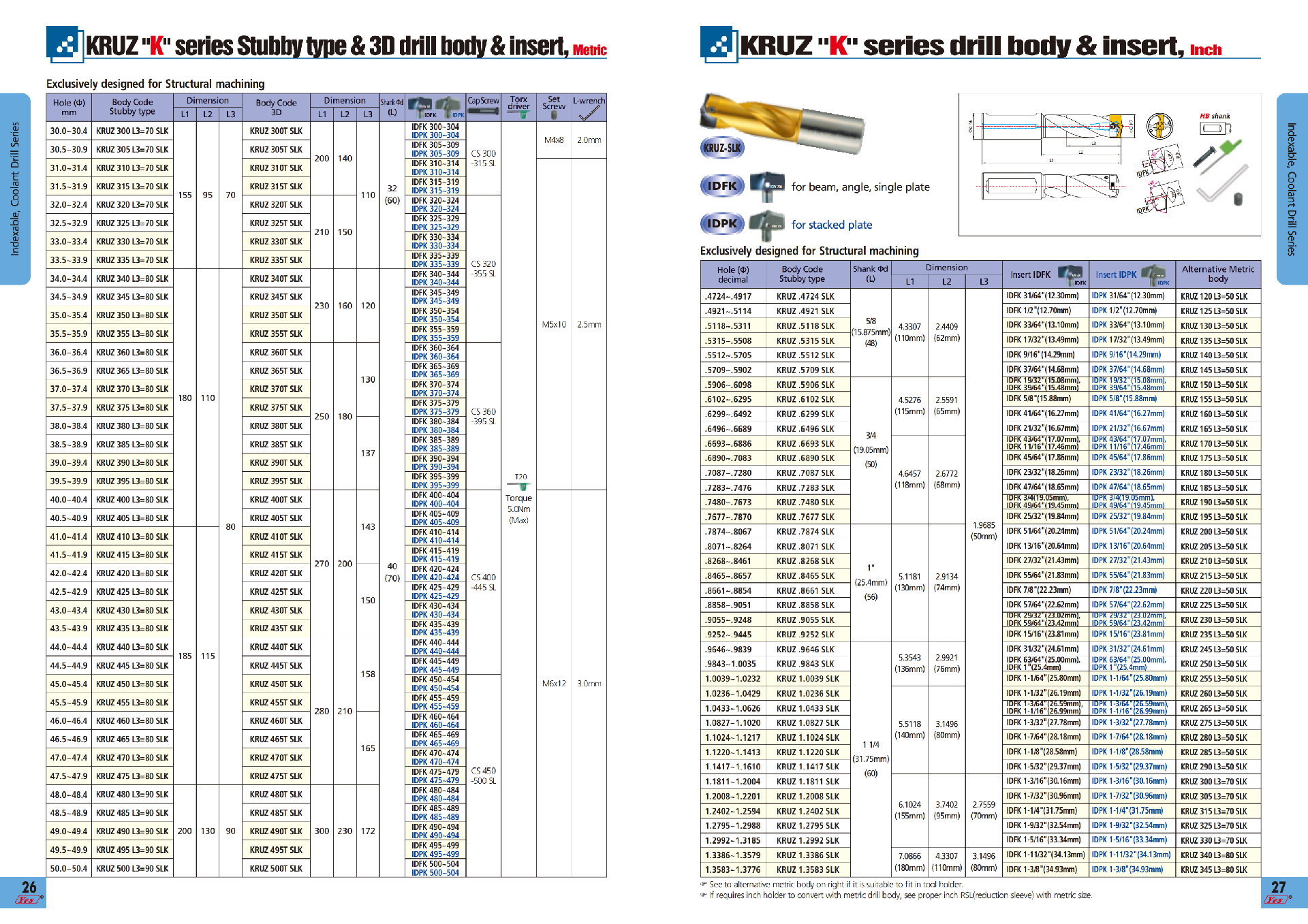

   Drilling hole from ф12~50.4,Body code (stubby type ) from KRUZ 120 L3=50 SLK~KRUZ500 L3=90 SLK.Body type (3D)KRUZ 120T SLK~KRUZ 500TSLK. Insert code:IDFK120~IDFK504,IDPK120~IDPK504.

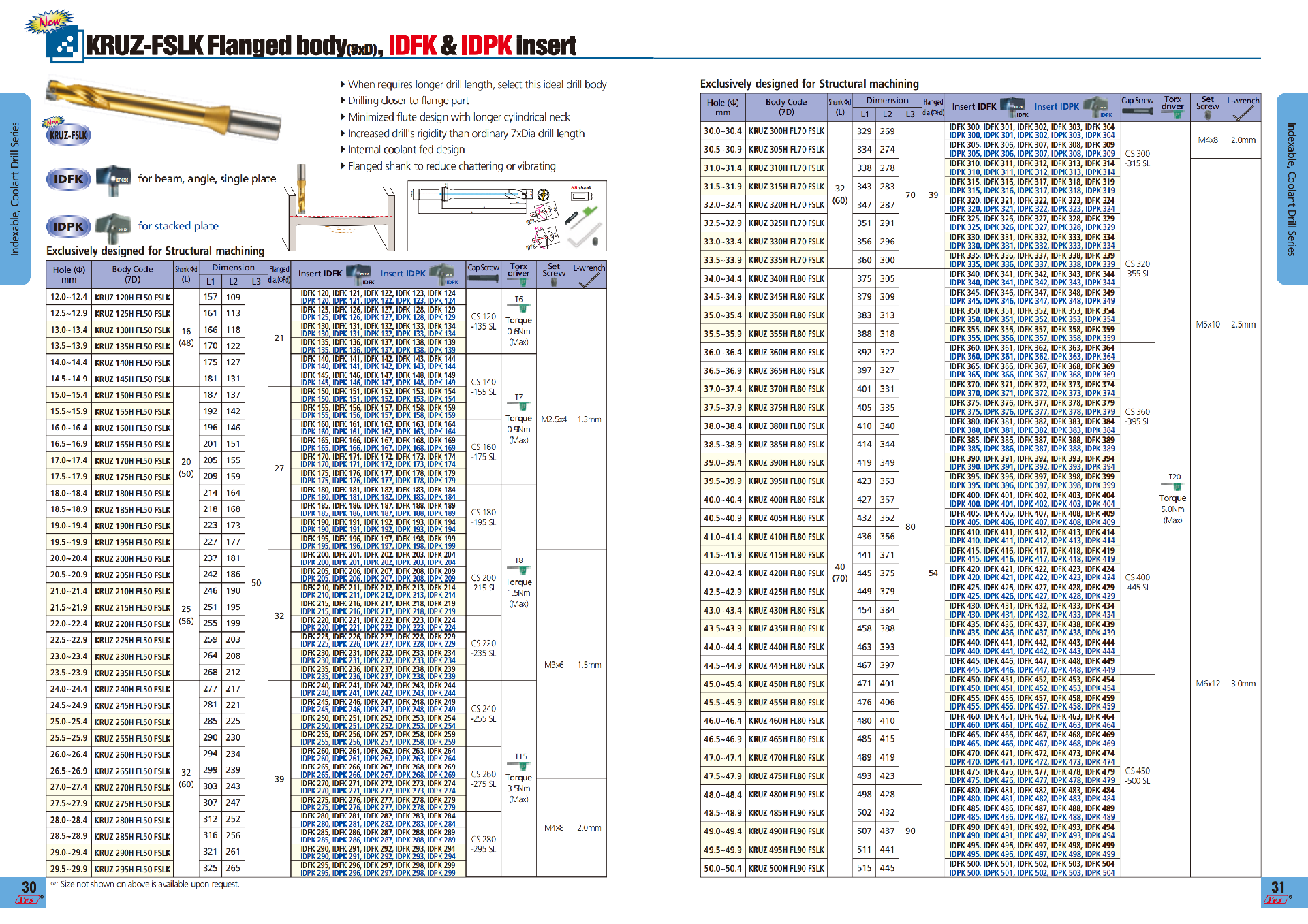

D. KRUZ-FSlK series,5D body&carbide inserts

  Drilling hole ф12~ф50.4, Body Code(5D):KRUZ120P FL50 FSLK~KRUZ500P FL 90FSLK.Inserts:IDFK120~IDFK504,IDPK120~IDPK504.

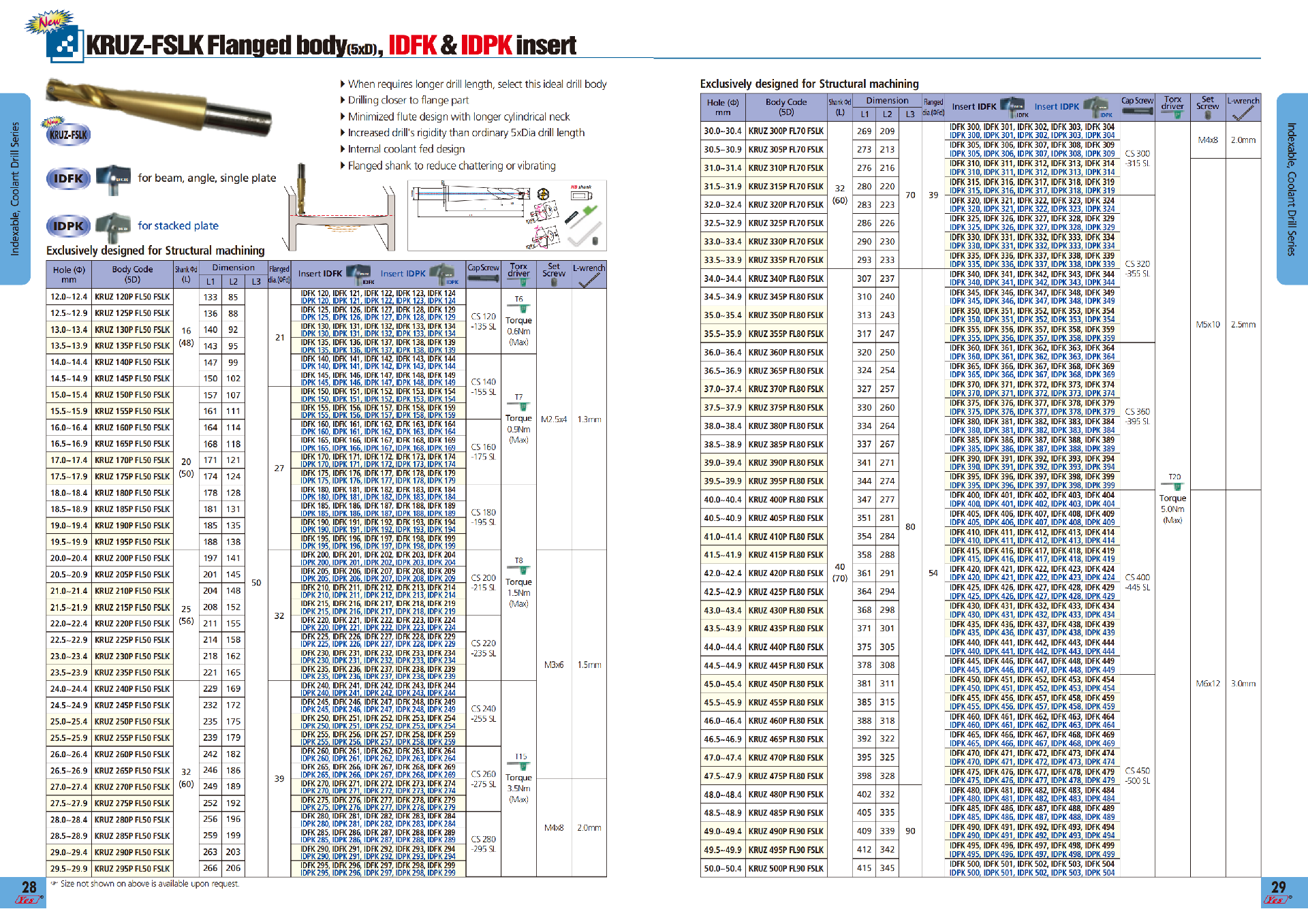

E. KRUZ-FSlK Flange body(7D)&Carbide inserts

Hole:ф12~ф50.4,Body Code:KRUZ120H FL50 FSLK~KRUZ 500H FL90 FSLK.Insert:IDFK120~IDFK504,IDPK120~IDPK504.




ALSO SUPPLY Kennametal  SHANGGONG ZCC.CT ZHHY SU OSG YAMAWA MITSUBISHI‌ KYOCERA‌ KORLOY‌ TAEGU TEC SANDVIK‌ WALTER‌ ISCAR‌ KAIMER
